Name: Anti-corrosion and Customized Facade Joint for Facade Support System
Brand: Hebei Jingliang Aluminum Alloy Products Co., Ltd
SKU: JL-T-1811
Availability: InStock

家へ > 製品 > 覆面サポートシステム >

Anti-corrosion and Customized Facade Joint for Facade Support System

anti-corrosion facade joint

customized facade support system

facade joint with warranty

起源の場所:

中国

ブランド名:

Jingliang

証明:

ISO

モデル番号:

JL-T-1811

連絡ください

要求引用

Anti-corrosion and Customized Facade Joint for Facade Support System

プロダクト細部

材料:

アルミニウム 6063、6061.6005、カスタマイズ

表面:

ミル仕上げ、アルマイト、コーティング

モデル:

JL-T-1811

応用:

テラコッタのファサード

インストール:

簡単

保証:

10年

ハイライト:

anti-corrosion facade joint

customized facade support system

facade joint with warranty

支払及び船積みの言葉

最小注文数量

200個

価格

交渉可能

パッケージの詳細

ペーパーパッケージ

受渡し時間

15営業日

支払条件

LC、T/T

供給の能力

15営業日あたり20000

OEMとファサードサポートシステムのための簡単にインストール可能な金属支架

最もよい価格を得なさい

防腐・安装が簡単なアルミ支架玄関支架システム

最もよい価格を得なさい

連絡ください

+8618522900527

info@hbjllzp.com

今連絡してください

製品説明

Anti-corrosion Customized Facade Joint for Facade Support System

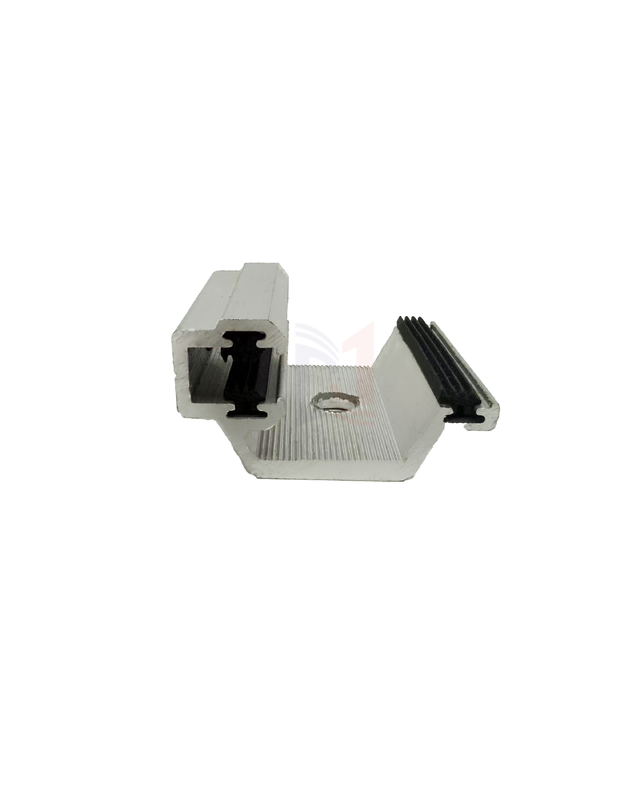

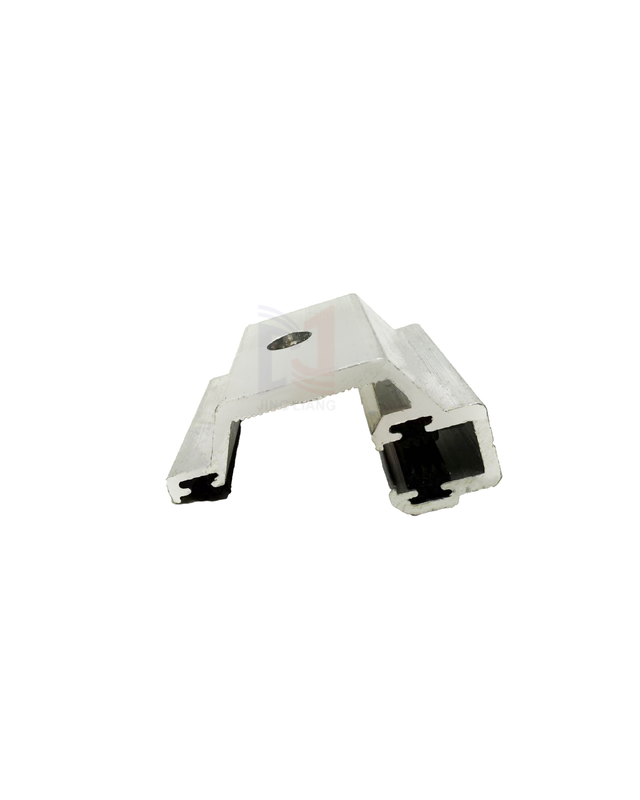

This facade joint is specifically designed for 18mm facade support systems as a connection component, commonly referred to as the T18-type aluminum alloy terracotta clip in the industry (also part of the SE-type ear/composite support system). The main body is formed by extruding 6063-T6 aluminum alloy and undergoes anodized surface treatment, paired with EPDM rubber shock-absorbing strips, serving as the core load-bearing component of the terracotta support system.

Product Features

Lightweight and High-Strength: Aluminum alloy has low density and light weight, effectively reducing the overall load of the facade. With a tensile strength of ≥240MPa and flexible buffering provided by rubber strips, it can absorb stress caused by thermal expansion and contraction or seismic displacement, preventing ceramic panels from cracking or falling off.
Corrosion-Resistant and Long-Lasting: The anodized aluminum alloy surface, paired with aging-resistant EPDM strip, exhibits strong resistance to acids, alkalis, salt spray, and UV rays. Maintenance-free and suitable for harsh environments such as coastal areas and highly polluted zones.

Applications

High-rise / super high-rise terracotta exterior facade (office buildings, hotels, commercial complexes, cultural venues, etc.)
Exterior facades of public buildings and exterior wall decorations of new constructions
Decoration works for indoor lobbies, corridors, and feature walls

Technical Support & Services

Our Cladding Support Systems come with comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team provides assistance with design, product selection, and installation details to ensure your project meets all safety and code requirements. Contact us for more information about our technical support services.

Packaging & Shipping

Products are carefully packaged in custom-made, environmentally conscious materials designed to prevent damage during transit. We partner with reliable shipping companies and offer multiple transportation options including ground, air, and sea freight to accommodate your specific project requirements and timelines.
